Remark: such item is a relatively complete project of steel structure.we design all drawings for customer,we supply all product including a distilling tower,crane with capacity of 10 MT,ALL the window and door except wall and roofing,we also supply quick-wear part and spare part f...

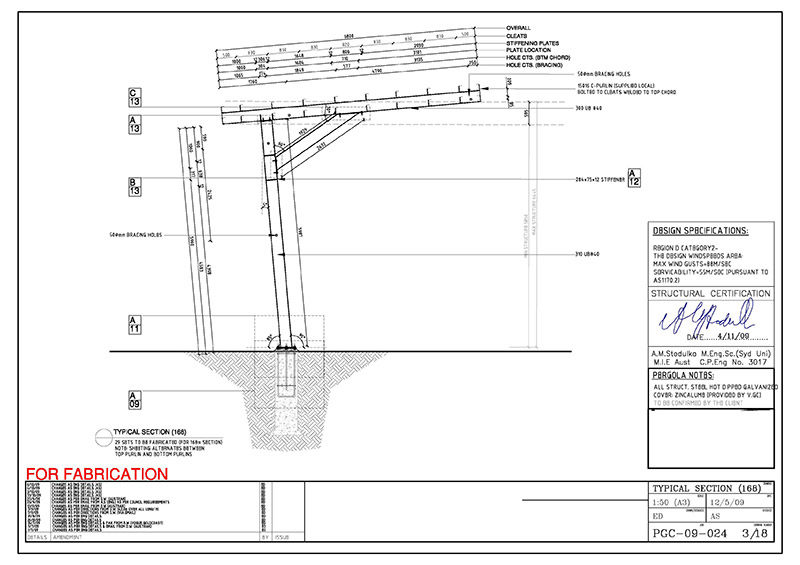

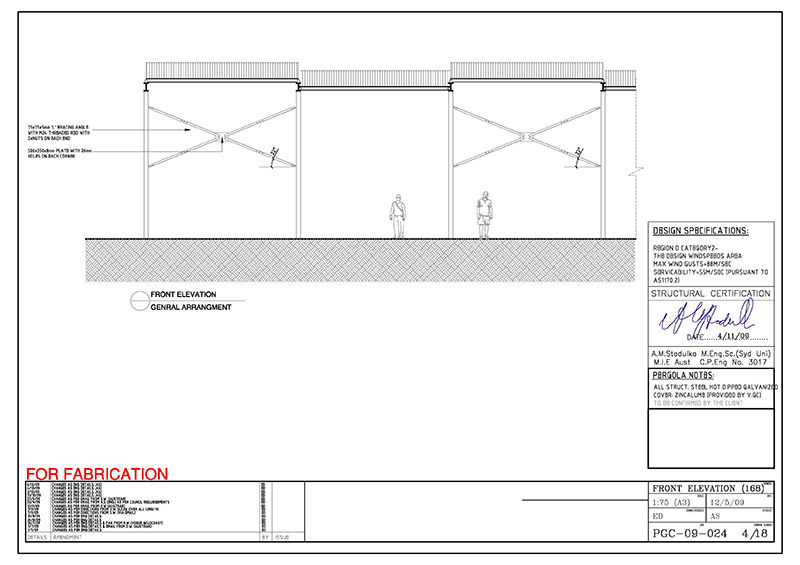

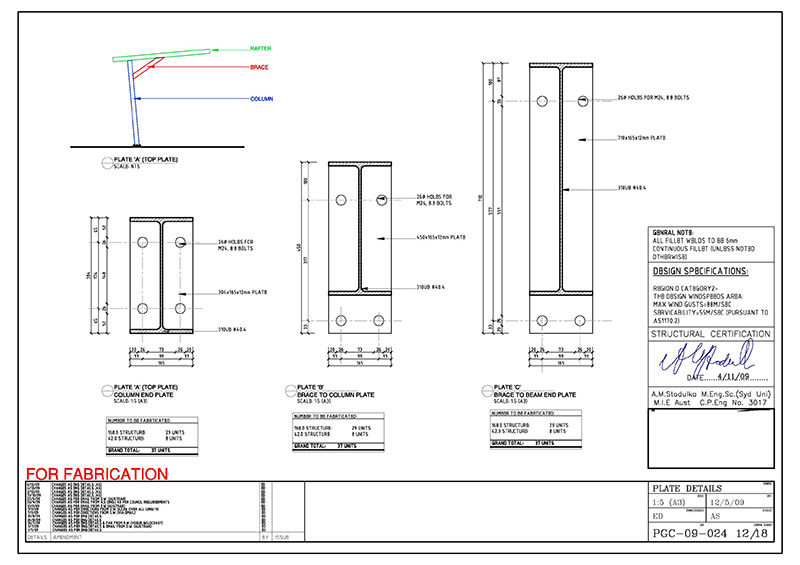

Project name: Parking Sheds in Sydney, Australia
The total area: 1150m2
Contract date: June 2013
The project location: Sydney, Australia
The project type: Steel structure fabrication

This workshop is located in Alma-Ata. Its size is 80*40m，the eave height is 7m，inside there is a 5 tons crane, on both sides there are two 4.2m*4.5m rolling doors, wainscot height is 1.2m, roof sheet and wall sheet are 50mmEPS sandwich panel ( because of the high transportation co...

The NZ client customizes several dairy sheds regularly every year. This project is a representative dairy shed whose dimension is 157.5(length) x 67.02 (width) x 3.5-4.5m (height). The structure type is H section lattice column and H section rafter. According to client’s requireme...

Member description: This project includes welded H section columns, big section height welded H section crane girder. Complicated frame demand processing in whole member, with difficulties of turning and transporting of 40MT one unit.

Complicated frame demand processing in whole member, with difficulties of turning and transporting of 40MT one unit. And crane girder has big section height, thick plates, high demanding in welding, and full completely penetration between flange and webs.

Span of main beam: 54meters. (The main beam is divided into four parts)

This project is welding workshop of shipyard.
The building area is 6’184.33 m2, and building height is 26 meters.

Painting: 80micro 2-PACK Epoxy Zinc Phosphate (Base coating);
150micro 2-PACK Epoxy finishing coating (French Grey)

Frame and crane runway girders are in steel grade of Q345B, columns and others are in steel grade of Q235B.
Quality testing rate of welding: all butt welds and double bevel groove welds are complete penetration welding. Flange and web of crane girders are also complete penetra...

Survey of item: the product is steel beam,we firstly cut steel plate,then we weld steel plate into H beam, holes was punched on the beams.

Survey of item: such item is one part of customer's whole project, drawing is very complicated, composed of many kinds of member, unit piece is long which require high fabrication precision,after order is confirmed, our workers is overtime to produce which guarantee product is fin...

Survey of project: This project is a government tender, usage: cow mill. The customer asked all steel structure members are fabricated according to AS/NZS 1554.1-2004 standard. The SGS Inspection Office is invited to trained and examined our welders in the mill.

This product is mainly used in the lintel of windows and doors in the building construction, hot dipped galvanized treatment make the suruface more attractive and durable. We can satisfy customers with Welded T bar in any length and any size.

The project location: Haerbin City
The project type: Steel structure fabrication and installation

The project location: Chaoyang District, Beijing City
The project type: Steel structure fabrication

The project location: Baiguo Mountain Forest Park, the east of Licang district, Qingdao City

Project type: steel structure design, fabrication and installation
Project Introduction: This project has 25 axes with the total span of 164.2m, the length of 272.02m and the height of 16.80m.

The roof frame is four square pyramid bolt spherical space truss structure which made from circle hollow section. In the ends of roof frame, there are 72 concrete columns at bay space 6m.

This warehouse covers 6787.2 square meter. The length is 160.5m, width is 42.42 m and eave height is 24.6m & 18.6m. The member section is made from box type, H section, Lattice etc.

Project Introduction: The structure type is large section welded H beam lattice column and H beam rafter. The column is about 3.5~4.6m wide, about 30~35 m high, and the weight of one column is about 20~38 tons. The fabricated members had the characteristic of large section area, h...

The project is constructed for 4 million t/y Coal to Liquid equipment. The dimension is125m(length) ×75m (width)×55m (height). The connection type is high strength bolt connection. The lattice column is fabricated by section and pre assembly on site. The non-standard members were ...

The dimension is 334.14m lenth x 61.33m width, construction area is 20492.82 tons. It has single ridge, single slope and two spans. There are one 32 tons crane, five 50 tons cranes and one 75 tons crane. The height of crane beam is 15m.

The length is 261.48 m and the width is 48.42 m. It have single ridge and double slope with the eave height of 18.6 m. It adopted internal gutter to drain water away. Inside the factory there are roof crane beams and wall crane beams. The steel column is the lattice column and aux...
