Fork

Fork for forklift

We can supply Standard fork(1-5t), high tonnage telescopic fork( 30-80t) for port fork, sliding port fork, mining fork, loading fork, farm fork,  string bar fork, stone fork, lead screw adjustable fork, hydraulic adjustable fork, folding fork, 15 types in total, and fork attachment such as fork positioned, fork extensions, rotator and flip device, fork carrier, bale clamp etc.

 Grade Chemical Composition (%)
CSiMnCrMo
 15B370.30-0.350.15-0.351.25-1.500.3-0.6
33MnCrTiB0.30-0.350.15-0.351.25-1.500.3-0.6
40Cr0.37-0.450.20-0.400.50-0.800.8-1.10
42CrMo0.38-0.450.20-0.400.50-0.800.9-1.200.15-0.25
35CrMo0.32-0.400.20-0.400.40-0.700.8-1.100.15-0.25










 Grade Mechanical Properties
Yield strength(MPa)Tension strength(MPa)Impact Value(-20)Hardness (HRB)PenetrantTest
 15B37≥784≥931≥27J285-363100%
33MnCrTiB≥784≥931≥27J285-363100%
40Cr≥785≥981≥27J285-363100%
42CrMo≥932≥1079≥27J285-363100%
35CrMo≥834≥981≥27J285-363100%

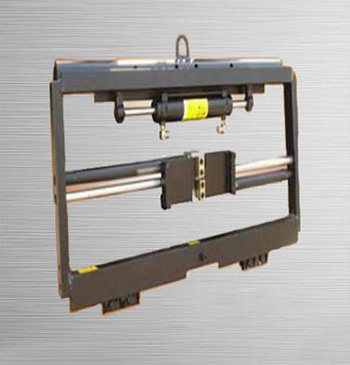

20180619102412676.jpg@!w800

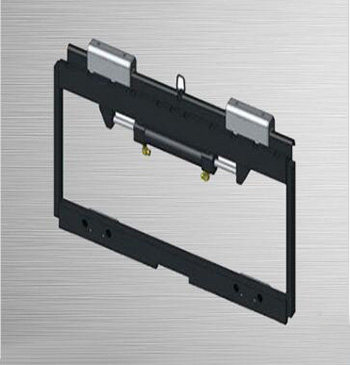

20180619102412349.jpg@!w800

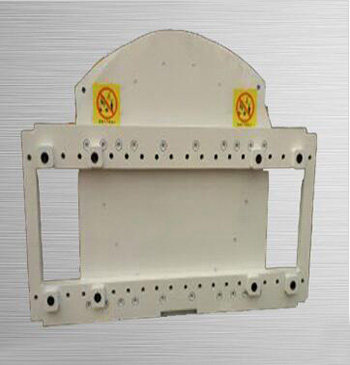

20180619102420155.jpg@!w800

20180619102412592.jpg@!w800

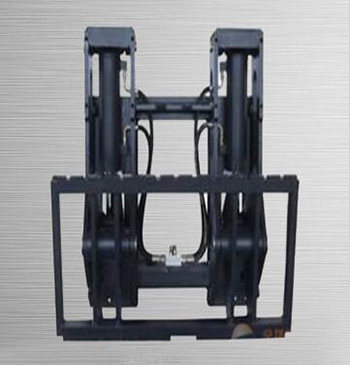

20180619102420463.jpg@!w800

20180619102420213.jpg@!w800
